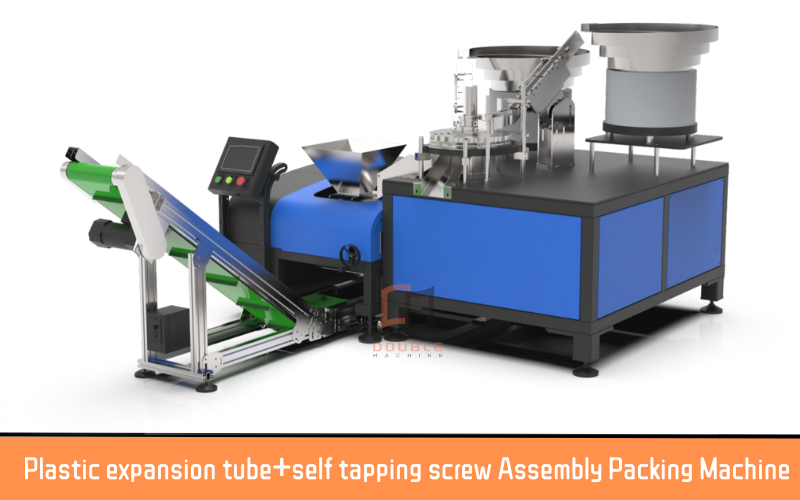

Plastic Expansion Tube Self - tapping Screw Fully Automatic Assembly Packing Machine

Plastic Expansion Tube + Self - tapping Screw Fully Automatic Assembly Packaging Machine

Product Introduction

The Plastic Expansion Tube + Self - tapping Screw Fully Automatic Assembly Packaging Machine is a self - developed automated solution integrating assembly and packaging processes.

With a production efficiency of 3 - 4 packs per minute (100 sets per pack), this machine redefines production workflows through advanced technology and user - centric design. It boasts high automation, precision, and efficiency, while ensuring simple operation & maintenance, comprehensive functionality, and cost - effective capital investment. By taking over manual tasks in assembly and packaging, it drastically cuts labor costs and enhances production output, winning widespread recognition in the market.

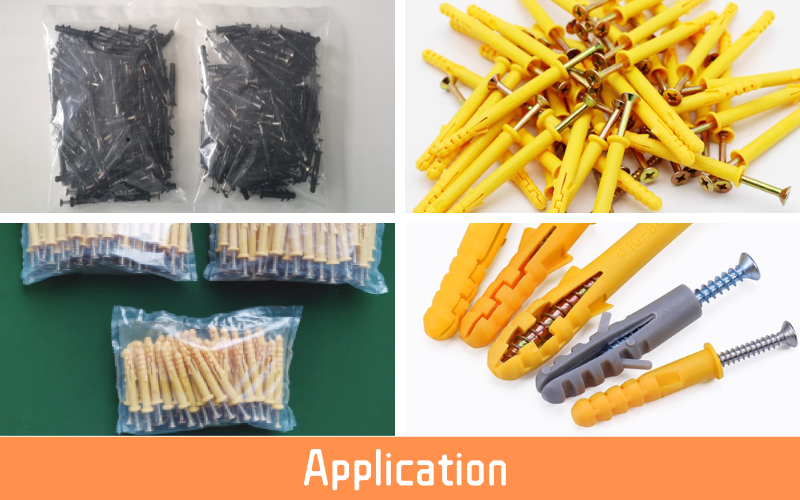

Industry Applications

This automatic assembly and packaging machine is primarily targeted at the anchor expansion nail industry, streamlining the production of plastic expansion tubes and self - tapping screws used for fastening in sectors such as:

• Construction: For assembling fixings in drywall, ceiling, and wall - mounting systems.

• Furniture Manufacturing: To produce components for cabinet, shelf, and frame assembly.

• Appliance Production: In the assembly of parts for refrigerators, washing machines, and other home appliances that require reliable fastening solutions.

Machine Working Process

1. Material Feeding

Plastic expansion tubes and self - tapping screws are separately fed into the machine via vibrating feeders. These feeding systems adopt high - speed independent feeding mechanisms, which can ensure a continuous and stable supply of raw materials to corresponding workstations.

2. Automatic Assembly

Once the raw materials are fed, the machine utilizes precision positioning devices and mechanical to align self - tapping screws with plastic expansion tubes. Through automated alignment and insertion actions, the two components are firmly assembled into a single unit.

3. Counting & Quality Control

High - precision counting sensors accurately count the number of assembled units. At the same time, additional detection modules (which can be configured according to needs) may inspect for defects such as misalignment or missing components.

4. Packaging Execution

Qualified assembled products enter the packaging workstation, where the machine automatically completes operations like bagging, sealing, and labeling (if required)

Machine Parameters

Packing Speed: 3-4 bags/min (with 100 pcs/bag)

Application product range: 6x40、6x60 or 6x60、6x80

Power Supply: 220V 50/60hz 1Phase

Power: 4KW

Packing film width: depend on the customer need
